Security Patrol Robot Solution – IR-OK-RB03
Security Patrol Robot Solution — IR‑OK‑RB03

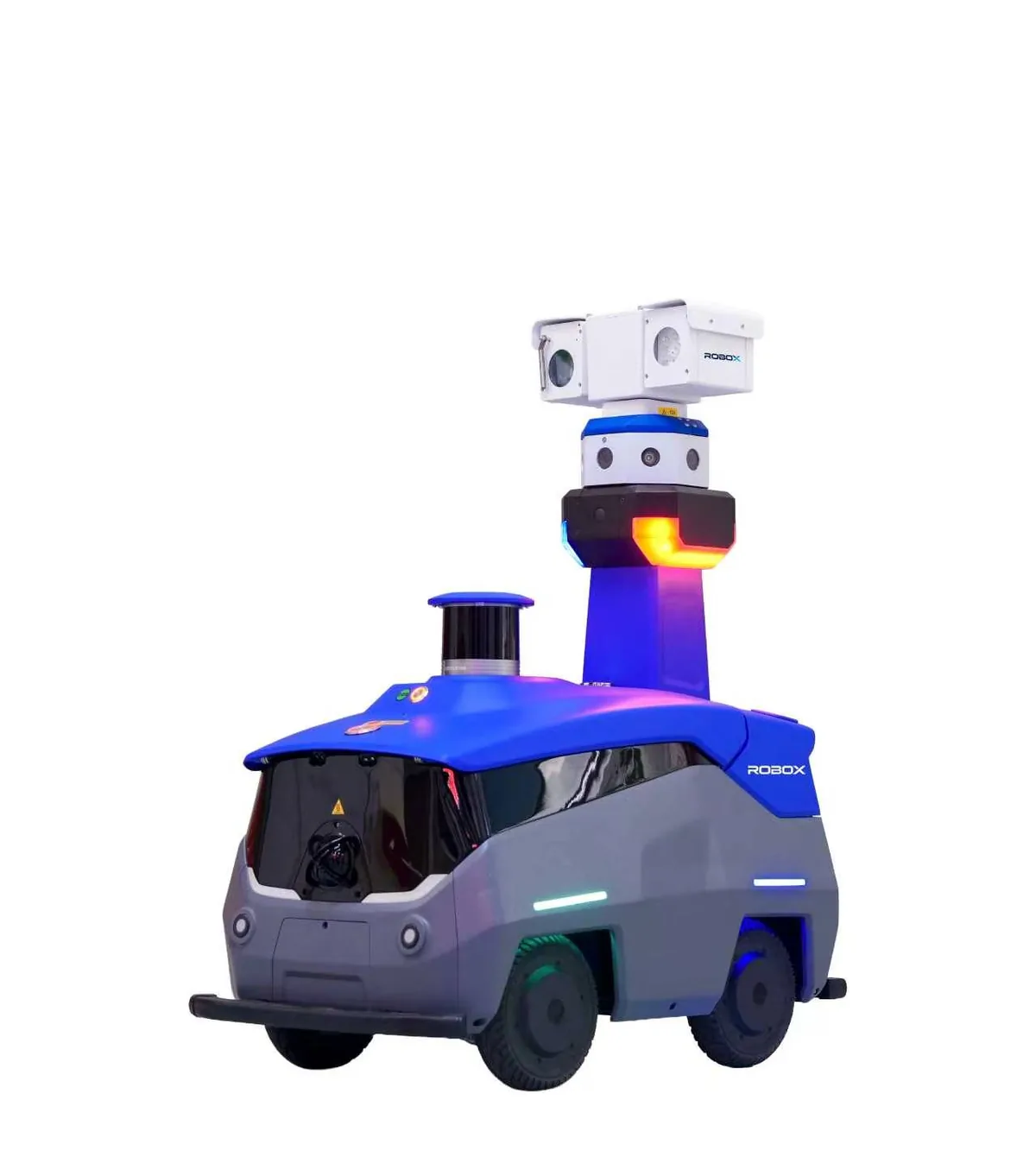

The Security Patrol Robot (IR‑OK‑RB03) is a wheeled autonomous‑driving patrol platform measuring 800 × 523 × 988 mm and weighing 60 kg. Its four‑wheel independent drive, independent steering, and independent suspension — combined with a 300 mm elevating gimbal — let it patrol vast sites day and night. It climbs 15° slopes, clears 40 mm obstacles and 100 mm ditches, wades through 60 mm of water, and brakes within 0.5 m at 0.8 m/s.
Key Capabilities
- 360° Panoramic Vision — Four 2 MP cameras provide all‑around situational awareness.
- Long‑Range Detail Capture — Additional 2 MP starlight‑grade camera with 25× optical zoom for close‑ups at distance, day or night.
- Laser SLAM Navigation — ±10 cm positioning accuracy; a single mapping run covers up to 100,000 m².
- Multi‑Layer Obstacle Avoidance — Fused LiDAR, ultrasonic, infrared, and physical collision sensing.
- On‑Board AI Detection — License plate, face, safety helmet, smoking, reflective vest, and mask detection.
- Platform Integration — Connects to the OKEWEI mobile AI evidence platform and GB28181 standard platforms.
- Flexible Power — Automatic recharging, manual charging, and fast battery swap; 4 h endurance, ≤2 h charge (20%–90%).
- Industrial‑Grade Protection — IP55 rating, -19 ~ 55 °C operating temperature, dual 4G or 4G+5G aggregated transmission.
Specifications
| Parameter | Specification |
|---|---|
| Overall Dimensions (mm) | 800 × 523 × 988 |
| Overall Weight (kg) | 60 |
| Gimbal Lifting Height (mm) | 300 |
| Ground Clearance (mm) | 75 |
| Installed Power (W) | ≤1000 |
| Typical Power Consumption (W) | ≤150 |
| Drive | Dual‑wheel independent drive |
| Steering | Four‑wheel independent steering |
| Suspension | Four‑wheel independent suspension |
| Cooling | Forced air cooling |
| Ingress Protection | IP55 |
| Max Obstacle Clearance (mm) | 40 |
| Max Slope (°) | 15 |
| Max Ditch Width (mm) | 100 |
| Max Short‑Time Wading Depth (mm) | 60 |
| Max Remote‑Control Speed (m/s) | 2 |
| Max Autonomous Speed (m/s) | 1.6 |
| Braking Distance (m) | <0.5 (at 0.8 m/s) |
| Navigation & Positioning | Laser SLAM |
| Obstacle Avoidance | LiDAR, ultrasonic, infrared, physical collision |
| Positioning Accuracy (cm) | ±10 |
| Mapping Area (m²) | 100,000 |
| Cameras | 4 × 2 MP 360° panoramic + 1 × 2 MP starlight‑grade 25× optical zoom |
| Battery | 48 V / 10 Ah |
| Endurance (h) | 4 |
| Charging Time (h) | ≤2 (20%–90%) |
| Charging Methods | Automatic recharging / manual charging / fast battery swap |
| Communication | Dual 4G or 4G + 5G aggregation |
| Operating Temperature (°C) | -19 ~ 55 |
| AI Functions | License plate, face, helmet, smoking, reflective vest, mask detection |
| Brand | OKEWEI (ROBOX) |
Typical Applications
- Campus & Street Security Patrol — All‑weather autonomous patrol with 360° panoramic and long‑range zoom imaging for large‑scale visual security monitoring.
- AI Violation Detection & Evidence Collection — Built‑in plate, face, and helmet detection automatically records anomalies and feeds standardized evidence platforms.
